Tilt frame
The tilt frame
is used to expand vehicle door and flap tests. The doors and flaps can be tested at different angles.
Details
Customers: BMW
Devices: Doors and flaps

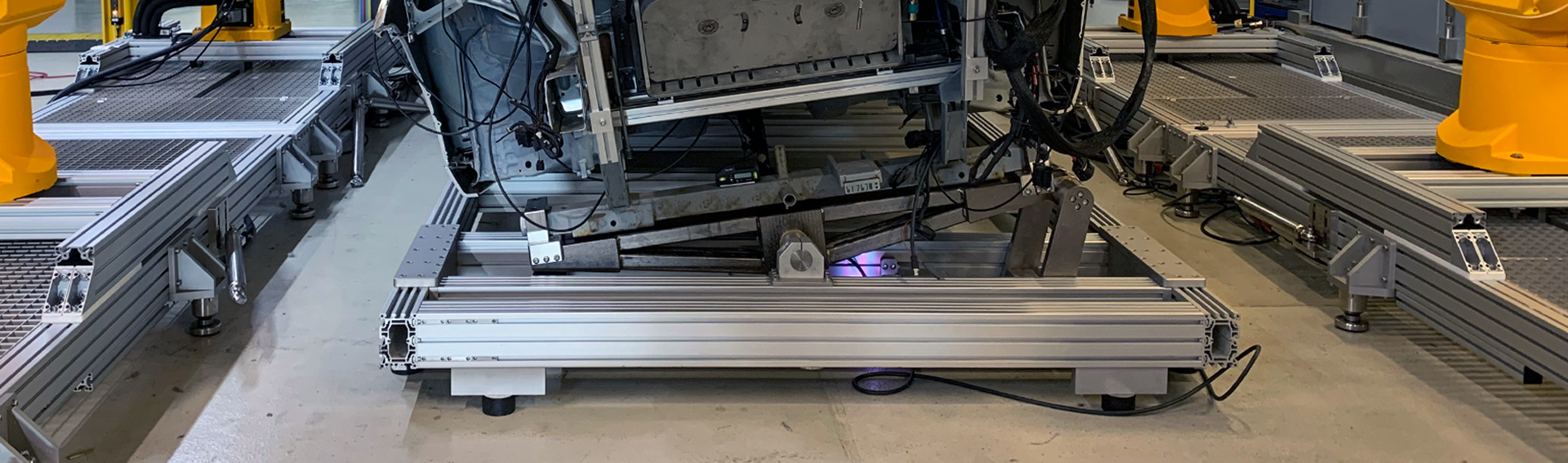

The vehicle body is mounted on the tilt frame via a traverse with four connection points. The frame can tilt laterally from -8° to +8°. This allows different vehicle positions to be simulated, for example, during door tests. The tilt frame is controlled via the central station.
- Frame made of profiles with wheels
- Load capacity 1000 kg
- Manual adjustment via mact
- Tilt of the body relative to the Y-axis ± 8°
- Connection to central station via KAT1 interface
